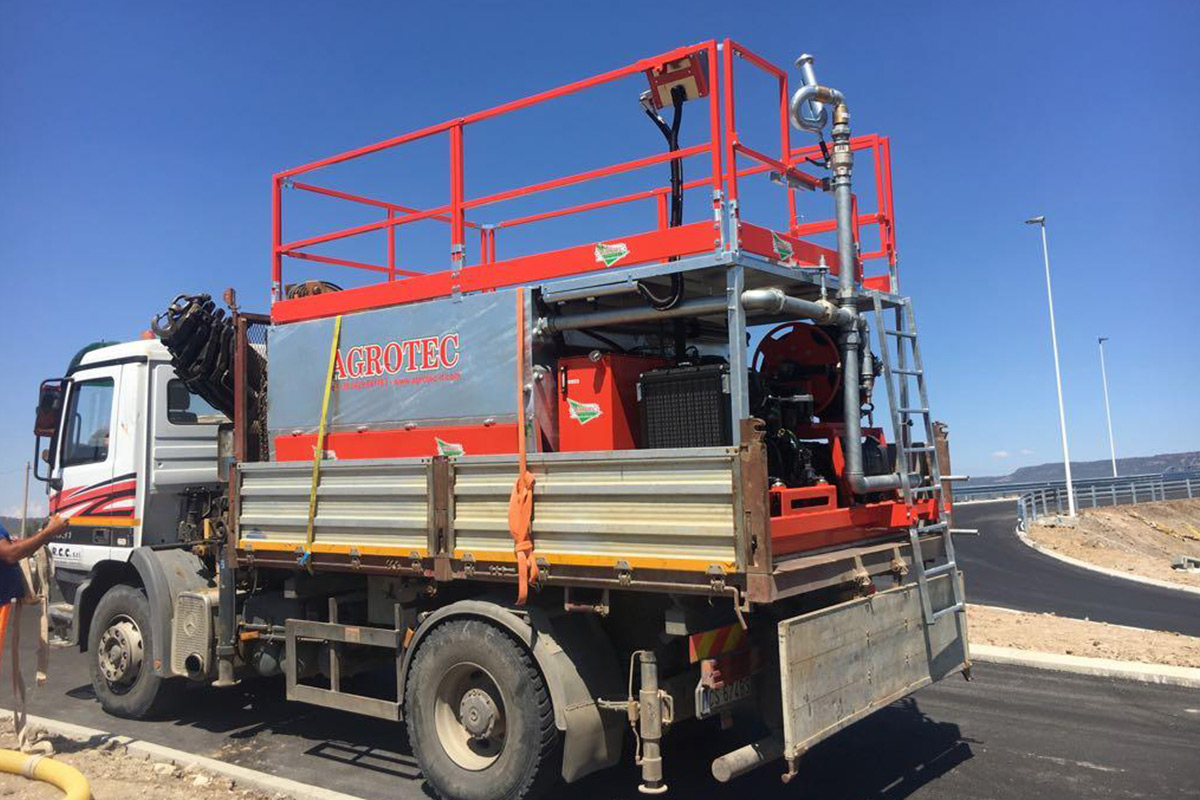

HYDROSEEDER
Tank
Hydroseeder tank features
- 6100 l, hot-galvanized steel
- Equipped with collecting tank
- 4” aspiration flange, flanged to the collecting tank for complete draining
HYDROSEEDER
Engine
The engine of the hydroseeder
- Köhler KDI-TCR 2504 55 kw
- EU STAGE V
- Liquid cooled
- Electrical starting
HYDROSEEDER
Pump
Self-priming pump (cavity pump)
- Positive displacement
- Flow rate: 600 l/min
- Total head: 14 bar
- Range: ca. 35/40 m
HYDROSEEDER
Control Panel
How the control panel of the hydroseeder works and what it includes
- Ignition and accelerator
- Pump and agitator engagement from the panel board on the deck by means of electromagnetic valves
- Revolution counter -hour counter
- Agitator speed regulator
HYDROSEEDER
Hydraulic System
Mechanical agitator with 9 two-way rotating paddles with flexible coupling safety system
- Ceramic seals, 3” galvanized pipelines
- Operated by oleodynamic engine
- Internal recirculation of the slurry with two-way valve
- 360° horizontally and vertically revolving cannon mounted on brass ball supports
HYDROSEEDER
Oleodynamic System
Oleodynamic System of the hydroseeder
- Two pumps flanged to the endothermic engine
- Two reversible engine for the agitator and the pump
- 115 l oil tank
- Automatic heat exchanger
- Double aspiration filter
The machine is equipped with 3 interchangeable nozzles and 5 m suction pipe with safety device
Hydraulic hose reel with 40 mt hose to purchase
- Measures: 4300 x 2300 x H 2680 mm
- Height with lowered rails: H 1900 mm
- Approx weight: 3500 kg
Pieces of hose ø 52 to be jointed
20-30-50 meters
Pipe fittings
each pieces has 2 connections
Full Service can satisfy every request by advising on the most suitable type of product in each situation, evaluating the pedological, lithological, morphological and climatic conditions influencing the choice of the most suitable system and components.
